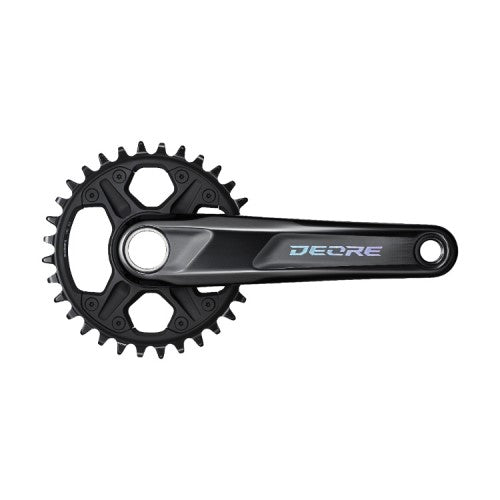

Crankset 12 Speed SHIMANO Deore FC-M6120-1

SHIMANO DEORE - 2-PIECE CRANKSET - Chain Line 55 mm - 1x12-speed

The SHIMANO DEORE FC-M6120-1 crank features an entirely new construction, using direct mount chainrings, special gear tooth profile for improved chain retention, and a 178 mm Q-factor that is compatible with 148 mm O.L.D. frames.

FEATURES
Superior chain retention for smoother riding even over rough terrain
DYNAMIC CHAIN ENGAGEMENT+ improves chain engagement and retention
More maneuverability and aggressive riding realized
For 148 mm O.L.D. and 55 mm chain line
Direct mount chainring

PRODUCT SPECIFICATIONS
MODEL NO    FC-M6120-1
SERIES    DEORE M6100 Series
Color    Series Color
2-PIECE CRANKSET    ✔
Chainring combination    32T
Compatible bottom bracket type_Outboard    ✔
Crank fixing screw included    ✔
Crank arm length (mm)_170    ✔
Spider/Gear arms    4
Optional chain guard_Without chain/bash guard    ✔
Recommended bottom bracket_Press-fit    BB-MT500-PA
Recommended bottom bracket_Threaded (normal)    BB-MT501
Threaded bottom bracket shell width (mm)_68    ✔
Threaded bottom bracket shell width (mm)_73    ✔
Q-factor (mm)    178
Chain line (mm)    55
Compatible chain    HG 12-speed
P.C.D. (mm)    Direct
Rear speeds    12
O.L.D._QR/Nut (mm)    141
O.L.D._Thru (mm)    148
