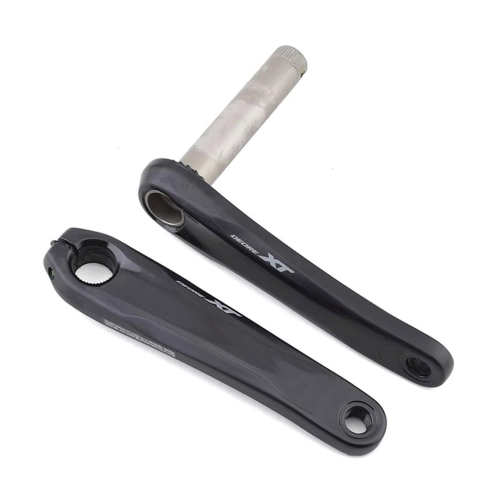

Crankset 12 Speed SHIMANO Deore XT FC-M8100-1 Hollowtech II 170mm w/o Chainring

SHIMANO DEORE XT

Since their introduction many years ago, Shimano Hollowtech cranks have been the best cranks you can put on a mountain bike. Extremely strong, remarkably lightweight, and stiffer than a straight shot of whiskey.

The crankarm construction exemplifies the level of craftsmanship that's put into a Shimano crankset, utilizing a 3D hollow bonded structure to further reduce weight and increase stiffness. Chainrings are easily exchanged with the new direct-mount system and the cranks can be swapped between single and double front chainring setups. The spacing and chainline are optimized for Boost-spaced rear hubs for proper cassette positioning.

Features:

Special MTB gear teeth profile improves chain engagement and retention

Hollow forged crank maximizes power transfer while limiting weight

Superior chain retention

Rigid and lightweight design for aggressive trail riding

Q-factor: 178m

Chainline: 55mm chain line works with 148 O.L.D. (Prioritizes frame and tire clearance)

Compatible Bottom Bracket Type: Outboard

Compatible Chain: HG 12-speed

Bolt Circle Diameter: Shimano Direct Mount spider

Chainring sold separately

Rear Speeds: 12

Recommended Bottom Brackets: BB-MT800-PA (Pressfit); BB-MT800 (Threaded)

Bottom Bracket sold separately

Threaded BB Shell Width: 68/73mm

Weight: 616g.
