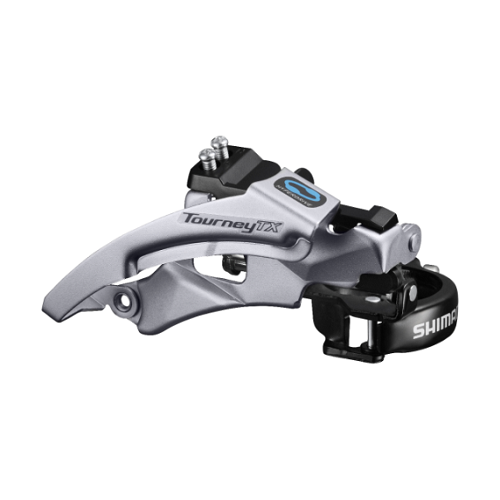

Front Derailleur 6/7/8 Speed SHIMANO Tourney FD-TX800

Front Derailleur 6/7/8 Speed SHIMANO Tourney FD-TX800

RM54.00 MYR
RM54.00 MYR
Sale Sold out
Shipping calculated at checkout.

Product Description

FRONT DERAILLEUR, FD-TX800-TS3, TOURNEY TX, TOP-SWING, DUAL-PULL BAND-TYPE 34.9MM(W/31.8MM & 28.6MM ADAPTER) CS-ANGLE :63-66, FOR 42/48T, CL:47.5/50MM, IND.PACK

Product Specifications

Action
TOP-SWING
Cable Route Type
DUAL-PULL
Chain Line(mm)
47.5 / 50
Chain stay angle
63-66
Clamp position
-
Color
Series Color
Fixing type
Band-type L (34.9 mm with 31.8 mm and 28.6 mm adapter)
Mount
BAND-TYPE L(34.9MM, W/31.8MM & 28.6MM ADAPTER)
Pull Type
Dual pull
Shimano Logo
-
Top gear teeth
42-48T
Total capacity
20T Capacity
Average weight
-
Color
Black
Clamp bolt_Finish
Nickel plated
Clamp bolt_Material
Steel
Speeds_Front
3
Speeds_Rear
8/7
Stroke adjusting screw|Finish
Zinc plated
Stroke adjusting screw|Material
Steel
Cable fixing screw|Finish
Nickel plated
Cable fixing screw|Material
Steel
Chain guide|Finish
Chrome plated
Chain guide|Material
Steel
Inner link|Finish
Painted
Inner link|Material
Steel
Outer link|Finish
Zinc plated
Outer link|Material
Steel
Bottom bracket plate|Finish
-
Bottom bracket plate|Material
-
Rear clamp band, base bracket|Finish
Painted
Rear clamp band, base bracket|Material
Steel
Front clamp band|Finish
Painted
Front clamp band|Material
Steel
Link bushings
-
Angled clamp band design
X
Angled stroke adjust screw
-
Multi access cable fixing screw
-
Applicable top-mid tooth difference
10T
Total capacity
20T
Top gear teeth
42T, 48T
Chainstay angle (deg.)
63-66
Chain line (mm)
47.5/50
Cable route type|Front-pull
-
Cable route type|Down-pull exclusive
-
Cable route type|Top-pull exclusive
-
Cable route type|Dual-pull
X
Mount|Direct mount
-
Mount|E-type|Without bottom bracket plate
-
Mount|E-type|With bottom bracket plate
-
Mount|Brazed-on
-
Mount|Clamp band (mm)|34.9
X
Mount|Clamp band (mm)|31.8
X (w/ M size adapter)
Mount|Clamp band (mm)|28.6
X (w/ S size adapter)
Action|SIDE SWING
-
Action|Down swing
-
Action|TOP SWING
X
Compatible chain
HG 8/7/6-speed
