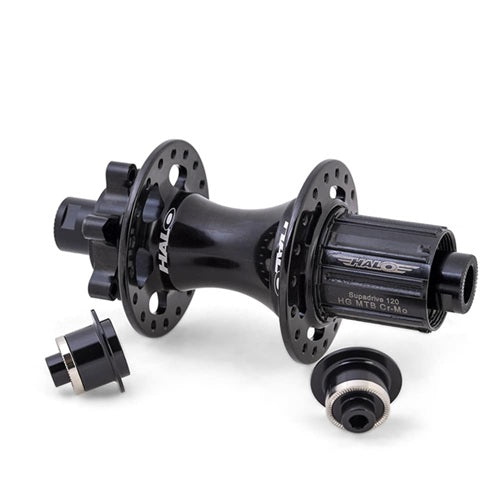

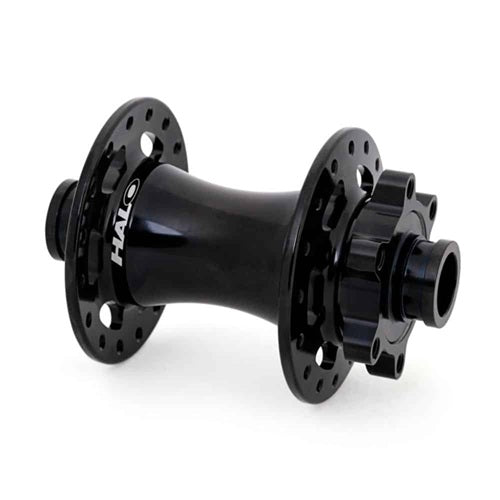

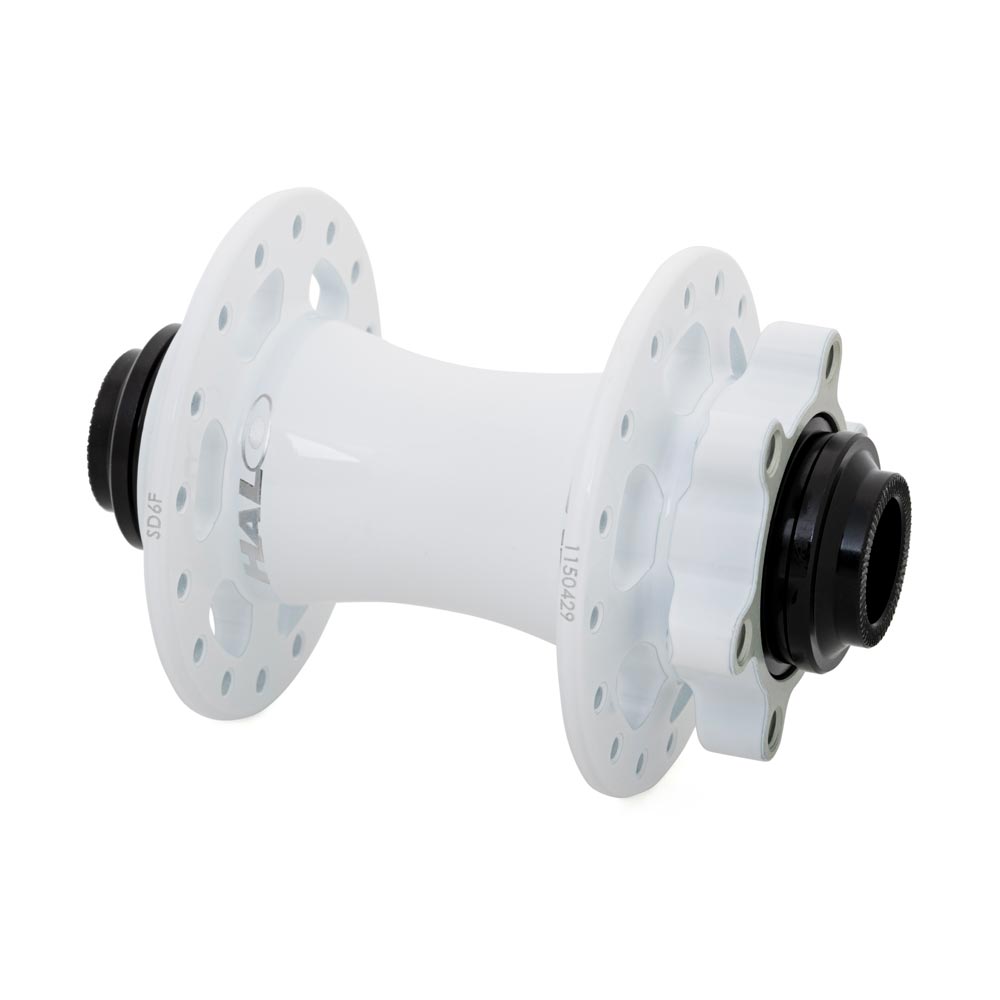

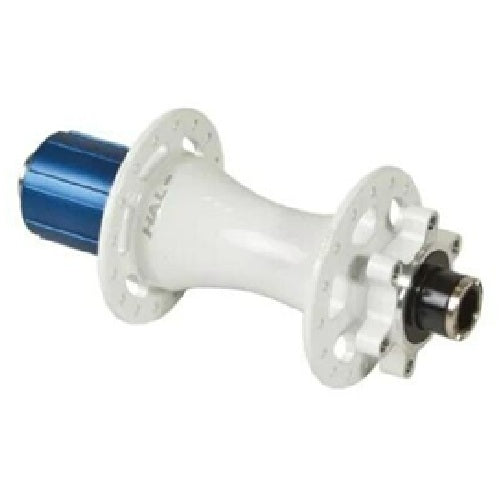

Hubset MTB HALO Supadrive 6 Bolt 32H Front & Rear

Durability, modularity and light weights make the MT Series a simple choice.

Suited best to XC, trail and enduro bikes alike, the MT Supadrive hub offers a 120 point near instant engagement with the ability to withstand substantial torque loads, such as those found with wide range cassettes. With multiple World Championship titles across a range of disciplines, the Supadrive system is tried and tested to the very highest level and is our most advanced and reliable drive system to date.

Wide spoke flanges, sealed cartridge bearings and a Cr-Mo tube axle in the MT Supadrive hub ensure longevity.

Designed to be run with mountain bike gearing, the MT Supadrive hub is available with SRAM XD or Cr-Mo SHIMANO MS or HG (MTB width) freehub options.

• Spoke Hole Circle Diameter (PCD):
  58mm
• Drillings:
  32H or 36H
• Model Ref:
  S-DRV-FG
• Freehub Body:
  Cro-Mo Shimano HG (MTB width), SHIMANO MS or SRAM XD
• Material:
  6061 Alloy forged hub shell
• OLD:
  142mm (135mm with optional QR endcaps)
• Ratchet:
  120 teeth triple-wedge pawl mechanism
• Bearings:
  Hub body: 6902 x2. Freehub: HG 6902 x2, MS 6802 x3, XD 15267 x3
• Disc Mount:
  IS 6-Bolt
• Weight:
  296g
• Centre to Flange:
  Left: 34mm, Right: 20mm
• Axle:
  Cro Mo with12x142mm thru ends
• Colour:
  Black
