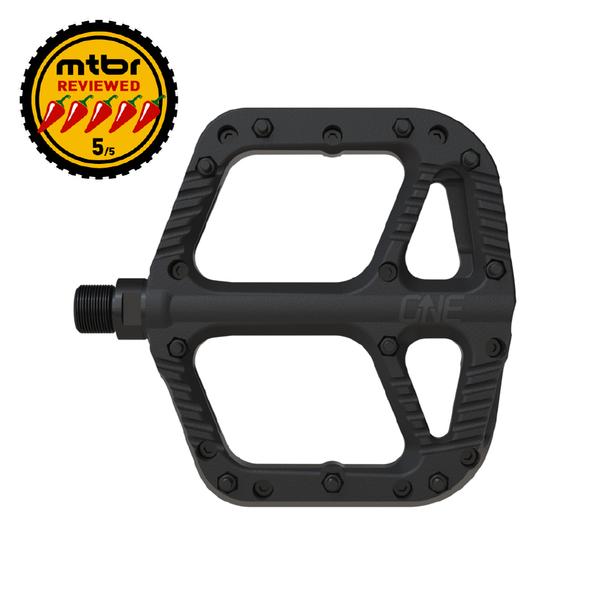

The OneUp Composite Pedals features a huge (115x105mm) super grippy platform with 10 rear-loading steel pins per side to keep your feet planted on even the roughest of trails. With a weight of only 355g, they won't slow you down on the climbs. Designed from stealth rubber down and shaped with a subtle convex profile to provide you with more grip thanks to the pedals sitting in the natural arch of your foot. The thin leading edge chamfered design gives you maximum clearance to reduce pedal strikes and deflect off trail obstacle.
FEATURES
10 rear loading Steel pins / side, with Nyloc nuts
DU plus cartridge bearing axle system
Thin leading edge chamfered design to deflect off obstacles
Wide platform design for increased stability
Contoured shape provides ultimate connected feel
SPECS
Weight: 355g Platform Size: 115x105mm
# of Pins: 10 per side
Axle Material: Black chromoly steel
Height: 18.5mm (13.3 at the leading edge)
Pin to Axle distance: 108mm

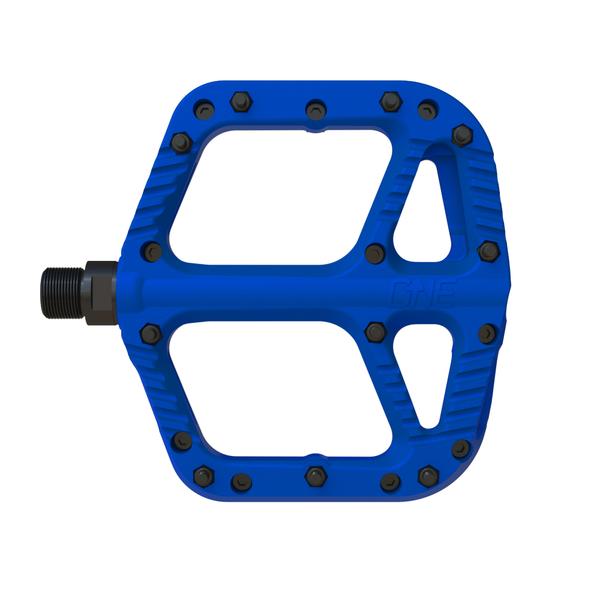

Color: Stealth Black, Red, Blue, Orange
Body Material: Nylon Composite
INSTRUCTIONS Install with 6mm Hex or 15mm pedal wrench. Torque to 35Nm (25 ft-lbs) Min
